 Level Meter

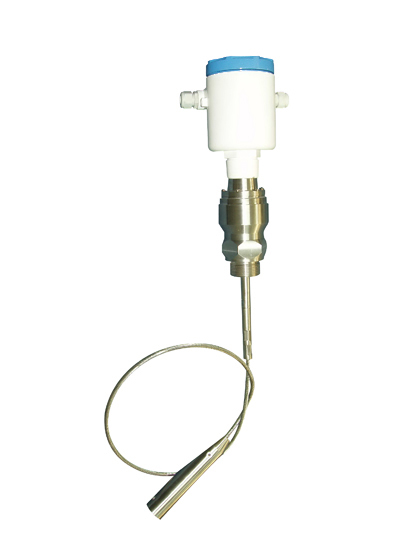

  Guided Wave Radar TRD31
 Product Category:Level Meter
 Product Code:
 Entering Time:2010/4/13
 Clicks: 11803
Enlarge Image
Product INformation:

Product parameter:
Maximum range: 30 meters (cables)
Accuracy: ± 10mm.
Frequency Range: 100MHz ~ 1.8GHz
Working temperature: -20 ℃ ~ 150 ℃
Process pressure:-10 ~ 40MPa.
Explosion-proof grade: Exia Ⅱ CT6.  Comply with IP68 protection standards.
It is applied in the field of petrochemicals, electric power, metallurgy, cement and other industries.
It can measure crude oil, light oil, natural gas, paint, pulp, coal storage, chemical water, sub-silos, etc.
