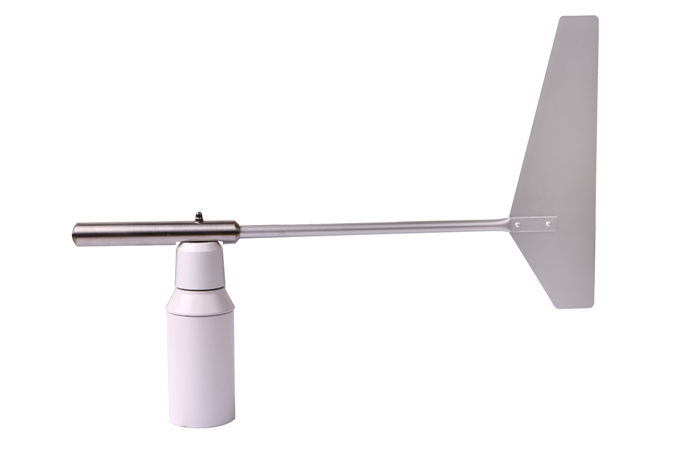

Wind Direction Transducer

Wind direction transducer is a professional meteorological instrument used to measure the level wind direction. The sensing component of the transducer is a wind vane parts, the angular displacement of the component will be converted into the corresponding Gray code by the Gray code dick, light-emitting diodes and phototransistor components.and output in electronic signal. The transducers are widely applied in meteorological stations, environmental protection, traffic and defence military fields and so on.

Merits

In input and output terminals, transient suppression diodes are used for overload protection.

Can be used in -50 , equipped with electronic heating system to ensure normal operation of the equipment in winter.

Adopts the labyrinth structure, effectively keep away from the wind and sandstorm affection of unfavorable environment.

Technical Parameters

Transducer Type

EL15-2A

EL15-2B

EL15-2C

EL15-2F

EL15-2D

EL15-2E

Measuring range

360°

Max.permissible errors

±3°

±5°

Resolution

2.5°

Sensitivity

0.3m/s(when wind vane deflects 30°)

0.5m/s(when wind vane deflects 30°)

Wind direction output

8 bit Gray code,

High level14V,

low level1V

8 bit Gray code,output5V

7 bit Gray code,

output 5V

7 bit Gray code,output12V

0V2.5V

Resistance to wind

75m/s

Working voltage

15V DC

5V ~15V DC

12V DC

10V14V DC

5V DC

Working

environment

   Temperature: -4060

Humidity0%RH100RH

Weight:

1.8kg

Max.Dimension

550mm×415mm
