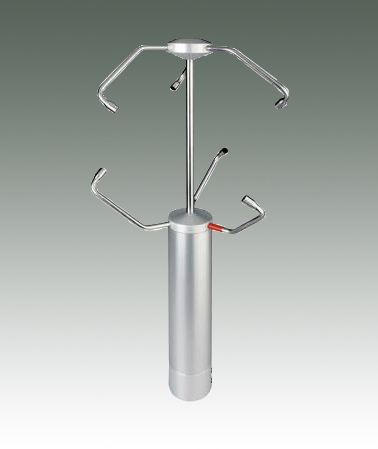

DES1 Type Ultrasonic Anemometer 3D
The Ultrasonic Anemometer 3 D serves for the measurement of the wind direction and the wind velocity from all spatial directions. The maintenance-free and wearless anemometer needs no re-calibration, and is equipped with a heating for winter operation even under extreme conditions.
All calculations are carried out by a high-capacity digital-signal-processor (DSP) within the propagation time of the ultrasonic signals with an accuracy basis of 32 bit.
The instrument offers comprehensive statistic functions such as gliding averaging, standard deviation, co-variance etc., which can be selected via the digital interface. The gliding averaging can be set optionally in vectorial or scalar form, identically or differently for each parameter.
Technical Parameters
|
Wind velocity and wind direction |
|
Measuring range |
0.01m/s～ 65 m/s azimut 0°～ 360°, |
|
|
0.01 m/s ～ 65 m/s elevation 0°～180° |
|
Accuracy |
WG ± 0.1 m/s (<5 m/s) 2% (>5 m/s)
WR ± 1° |
|
Acoustic-virtual temperature |
|
Measuring range |
-40°C～70°C |
|
Accuracy |
± 0.5 Kelvin in the range from-40°C ～70°C |
|
Output of measured values |
|
Measuring rate |
1 msec to 60 seconds,
selectable in 1-msec increments |
|
Output rate |
1 msec to 60 seconds,
selectable in 1-msec increments |
|
Data output digital |
RS485/RS422, bus operation, FD/HD |
|
Baud rate |
1200 to 921600 Bps |
|
Analogue output |
3 analogue channels for output of X,Y, Z vector-components 0V～10 V load, 4000 ohms, 4mA～20 mA to 400 ohms load |
|
Analogue inputs |
3 x standard, 2 x optional; voltage inputs 0V～10 V, resolution 16 bit, measurement error < 0,1% |
|
Output-format |
ASCII Thies, NMEA 0183 version 3,
user-definable, status |
|
Features |
|
Firmware update |
Upload via serial interface (RS485) |
|
General |
|
Operating voltage |
12V～24 V AC/DC current consumption:
3 VA, heated 150 VA The heating, which can be switched off, is temperature-controlled |
|
Temperature range |
-55°C～ 70°C |
|
Protection |
IP 65 |
|
|
|
|
