  OSB-HF Buoy
 Product Category:Meteorological Instrument
 Product Code:OSB-HF
 Entering Time:2017/3/22
 Clicks: 11748
Enlarge Image
Product INformation:

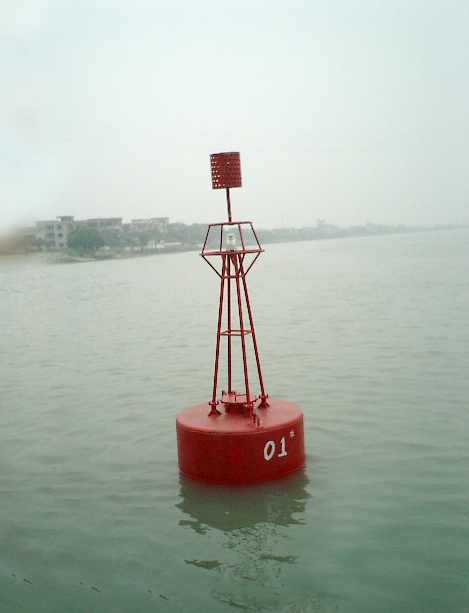

OSB-HF Buoy

The type, appearance and light quality of OSB-HF buoy is as same as that used now in companies of the Ministry of Communications, but the steel thick of material is reduced, thus the buoy weight is greatly lightened and is suitable for using by non-professional units and departments.

If the designed life of buoys located along the coast or Inland River by the traffic department is 12 years, the designed life of OSB buoy is 6-8 years, but it is enough for non-professional units.

The waterway department has the professional engineering ship, which capability is certainly suitable for the placement and recovery of buoy, but with higher costs. Many non-professional units are not only require low construction costs of buoy for expenditure saving, but also hope to lower the cost of working ships.

The design of OSB buoy is completely in conformity with requirements of IALA and GB.

Design basis

   GB 5863 93 Aids to Navigation on Inland Waterways

   GB 5864 93 The Main Dimensions of Aids to Navigation on Inland Waterways

Specification requirements

Type selection: cylindrical (or barrel) floating buoy with 1.2m of diameter;

Color: left buoy -- black;

     right buoy -- red;

Left topmark -- conical and black;

right topmark -- tank shape and red;

Light quality: Left buoy -- white/green, single/double flash, 4-5 seconds of cycle

           Right buoy -- red, single/double flash, 4-5 seconds of cycle

Technical Specification

Buoy Specification

OSB-HF1.2-D1

Remarks

Diameter (m)

1.220

Buoy body

Barrel

Heightm

0.9

Water displacement (t)

Swing time (second)

1.2

Inclined angle with 3 knots of current velocity(°)

Gravity head of buoyant center (cm)

35

Color

Left black (top cone)

right red (top cylinder)

Conform to GB

Material

Ship steel plate

Plate thickness (mm)

Total height (m)

3.04

Weight (kg)

400

Depth of immersion (m)

1.074

Arrangement depth (m)

2.515

Height of lamp hanger (m)

1.600

Lamp height (m)

2.000

Sight distance of lamp

(sea mile)

3.5

Light quality

White, red single

flash, 5 s of cycle

Conform to GB

Luminescent material

LED long lifetime

Principle of lamp control

Singlechip quartz

crystal

Battery voltage (V)

12

Battery adoption

YUASA 12V 7

ampere-hour×4

Power of solar panel (W)

5 (monocrystalline silicon)

Principle of electrification

control

Automatic protection is

activated when voltage

reach to 13.5V

Allocation Table of Anchor Chain

Parts Name

OSB-HF1.2-D1

Remarks

All chain link  (m)

Φ22×27.5×1

Conform to GB

Short chain link (m)

Φ22×4.5×1

Conform to GB

Bridle chain link (m)

Φ22×2.77×1

Conform to GB

Swivel group

Φ28×1

Conform to GB

Shackle

Φ30× 5

Conform to GB
