  YE1-1A Type Calibration Equipment for Pressure Instrument
 Product Category:Meteorological Instrument
 Product Code:YE1-1A
 Entering Time:2017/3/22
 Clicks: 13117
Enlarge Image
Product INformation:

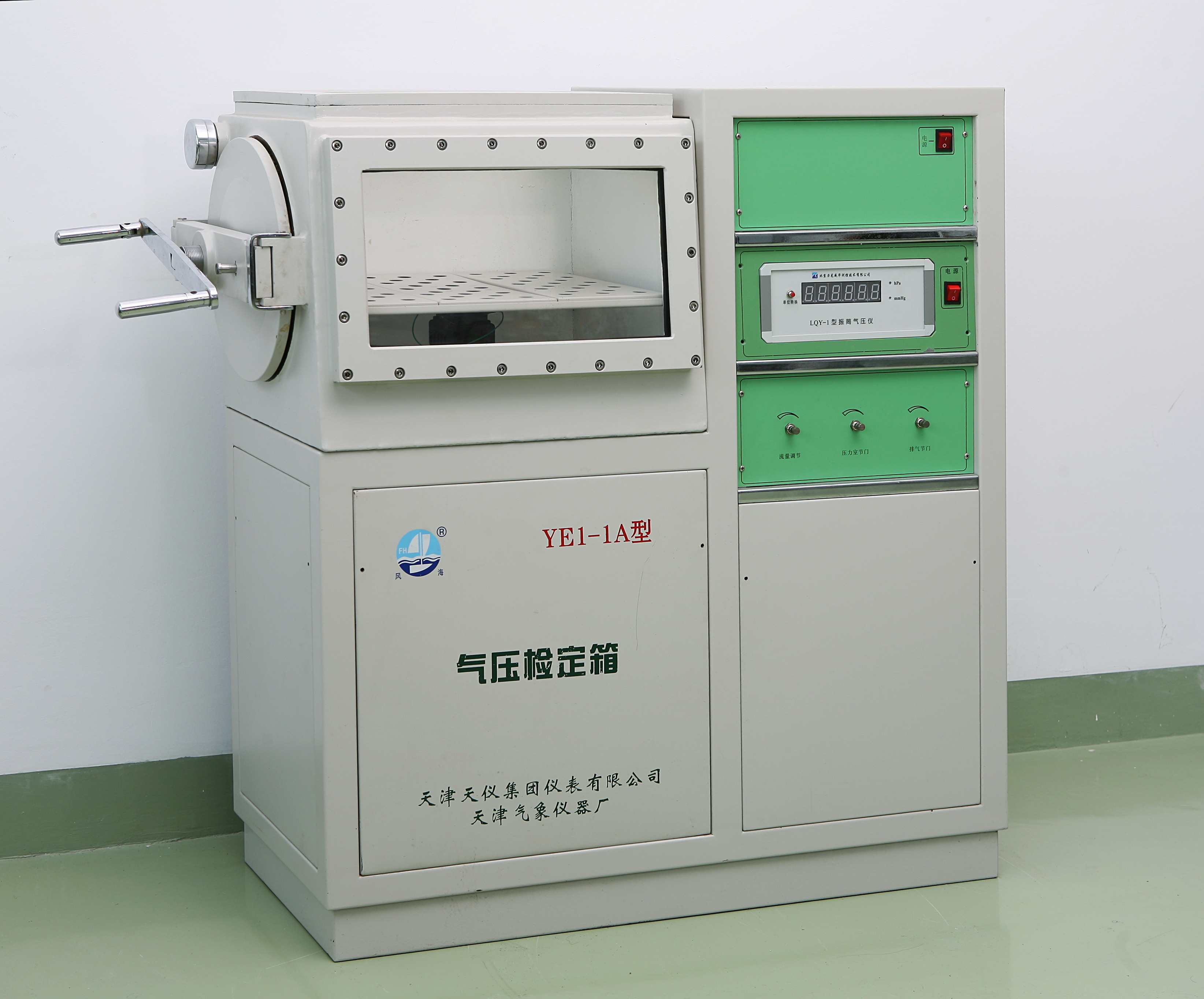

YE1-1A Type Calibration Equipment for Pressure Instrument

General:

YE1-1A type calibration equipment for pressure instrument is a kind of special equipment used for calibrating and checking the indication value of various air pressure instruments and sensors, with the advantages of advanced technology, perfect function and convenient application, adopts the vibration cylinder pressure sensor as standard, can realize overall automated microcomputer controls on air pressure indication calibrating and checking .

Technical Parameters:

Range of pressure adjustment 500hPa1070hPa

Designed pressure permissible errors: ±1hPa

Leakage rate in the pressure room <0.3hPa/10min

Permissible errors of temperature measurement ±0.5

Working environment

                   Temperature 1528

                   Humidity   ≤80RH

Power voltage 220V×1±10%V AC  50Hz±2Hz

Dimension 1143mm×430mm×1091mm
