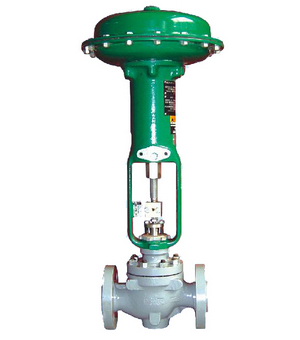

  G Series GD-type Pneumatic Diaphragm Cage Control Valve
 Product Category:Valve
 Product Code:
 Entering Time:2010/4/15
 Clicks: 13938
Enlarge Image
Product INformation:

Product Parameter:
 Nominal Diameter: DN25 ~ DN200
 Pressure rating: 150LB, 300LB, and 600LB
 Medium temperature (℃): -101 ~ +538
 Flow characteristics: equal percentage, linear, quick opening
 Inherent adjustable ratio: 50:1
 Leak Standard: IEC 60534-4 Ⅳ grade
 Maximum source of air pressure (MPa): 0.35
 Spring Range (kPa): 20 ~ 100,40 ~ 200
 Material: WCB CF8 CF8M CF3M
Application:
The product has outstanding advantages including reliable work, wide adjustable range, stable operation, simple calibration, small valve leakage and interchangeable parts within the valve. It is widely used in petroleum, chemical, power station and other automatic control of the industrial fields.
